| Function |

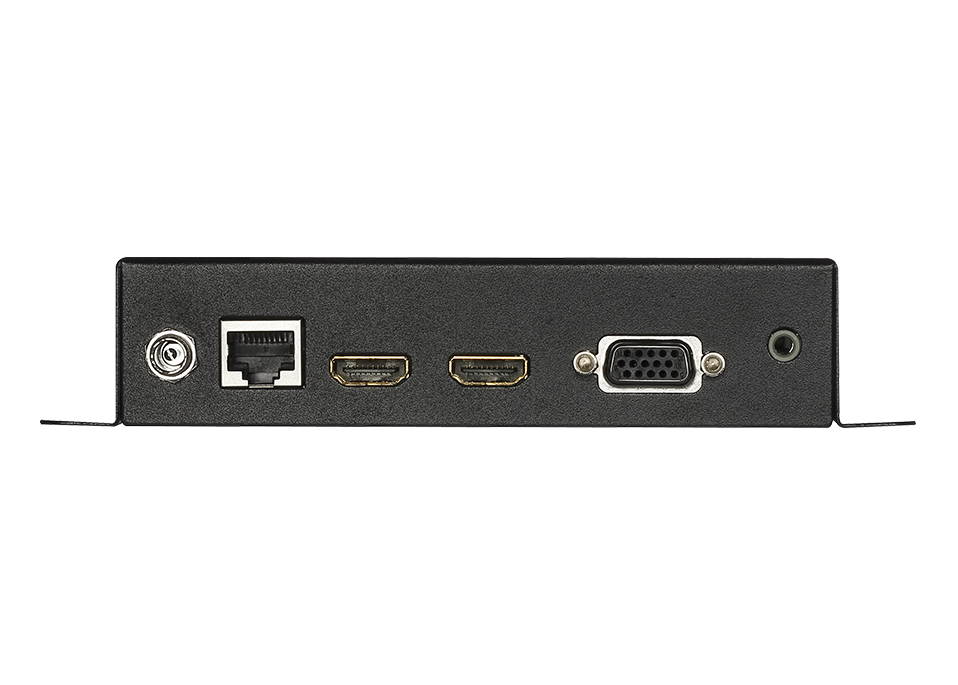

VH-ELWB (Transmitter) |
VH-ERWB (Receiver) |
| HDMI In Connector |
1x HDMI A-Type Female |
None |
| HDMI Out Connector |
1x HDMI A-Type Female (DA) |
1x HDMI A-Type Female |
| VGA In Connector |
1x HD-15 Female |
|
| RJ-45 Connector |
1x |
| IR Out |
1x 3.5φ Stereo Jack |
| IR2 In |
1x 3.5φ Stereo Jack |
| Source Select (TAC Switch) |
1x TACT SW |
| Source Select (TB) |
1x2 Pole Captive Screw |
| Max. Resolution |
ULTRA HD 4Kx2K |
| FW Upgrade Switch |
8PIN DIP Switch |
2 PIN DIP Switch |
| Mode Select Switch |
None |
| Cable Distance |
100m (Max.) |
| Power Adapter (Min.) |
DC 48V with lock |
| Housing |
Metal |
| Weight |
550g |
324g |
| Dimensions (LxWxH) |
171 x 120 x 35mm |
150 x 80 x 35mm |
-
1x VH-ELWB (Transmitter)
1x VH-ERWB (Receiver)
1x User manual
1x Power adapter DC 48V with lock and power cord
1x IR blaster cable
1x IR receiver cable
4x Screws
8x Foot pads
2x Female 1x2 pole captive screw socket
-
