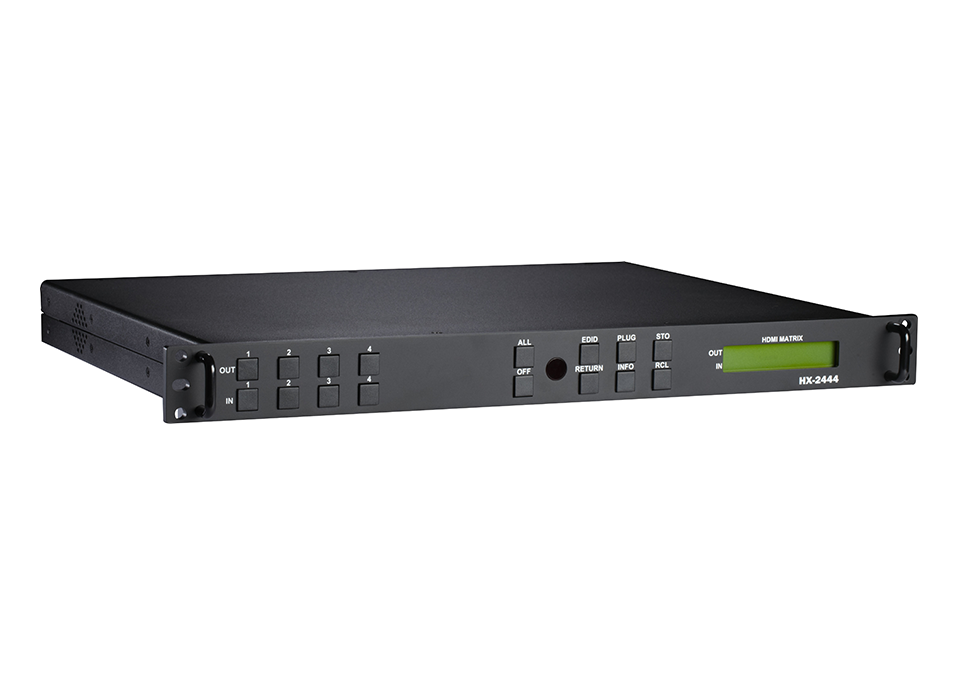

HX-2444
AVLINK Matrix Switcher is high performance HDMI switching equipment combining with video and audio. It is used for input/output cross switching of multimedia signals. Through 4 , 8 or 16 sets separated HDMI sources, you can transmit multimedia input separately to each multi-output equipment, thereby minimizing signal attenuation and ensuring high definition, integrating high fidelity graphics and audio signal output. Through the extensible accessory devices, AVLINK Matrix Switcher can transmit data or detect signal to over long distances about 100 meter with extender (HX-RW).
- Support 4x4 fixed I/O interfaces
- Mixed use HDMI cables for input and Cat.5e cables for output connections
- Output supports HDBaseT as a long-distance transmission via a 100m Cat.5e cable
- HDCP Compliant
- EDID management (Copy from OUT port 1)
- Centralized control upon 32 series connections via RS-485
- Memory control can up to 8 sets
- Support resolution up to 4K x 2K@30Hz, 8-bit or 1080P@60Hz, 12-bit
- Support original 3D pass through
- Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD MA)
- Fast response time for channel switch
- IR pass-through supports all IN and OUT ports
- IR pass-through supports all kinds of IR frequency band
- IR pass-through supports duplex transmission between IN and OUT ports
- IR pass-through switch is based on HDMI switched by controller
- Support IR remote control
- Support IR Mini-Controller to select the input channel through Output configuration
- Support RS-232 control
- Support RS-485 serial control
- Support Ethernet control
- Internal universal power supply
- 1U rack for HX-2444
-
Function HX-2444 Input Connector HDMI Type A x 4 Output Connector RJ45 x 4 RS-232 Connector DB9 Female LAN Connector RJ-45 RS-485 Connector 2 2 pins Dip Switch 1 8 pins Dip Switch 1 LCD Module 1 Power 100~240VAC, 50~60Hz, internal Housing Black Aluminum Mounting Rack mountable (1U-rack-mount kits) Weight 3550g Dimensions (LxWxH) 332x482x43 mm (full rack wide without grips) Multimedia Max. Resolution
4K x 2K@30Hz, 8-bit Highest TMDS Frequency
300 MHz Control Information HDMI Cable Distance At least 10 meter Cat.5e Cable Distance 100 meter (Max.) Baud Rate 9600 bps; 8 data bits, 1 stop bit, no parity Ethernet Protoco HTTP, DHCP, TCP/IP, ICMP (ping) Program Control Web Server, AVM Application Serial Control Port RS-232:9Pin Female D Type Connector RS-485:1X5 Pole Captive Screw Control Sequence Matrix Remote Control Remote Controller, IR Receiver, IR Blaster Web Server LAN, RJ-45 -
1 x HX-2444 Matrix Switcher
1 x RS-232 Communication Connected Cable
1 x Power Cord
1 x IR Receiver Cable
1 x IR Blaster Cable
1 x LAN Line
2 x Female 1x5 Pole Captive Screw Socket
1 x Remote Controller with 2x AAA battery
1 x AV Matrix Software CD
1 x User Manual
