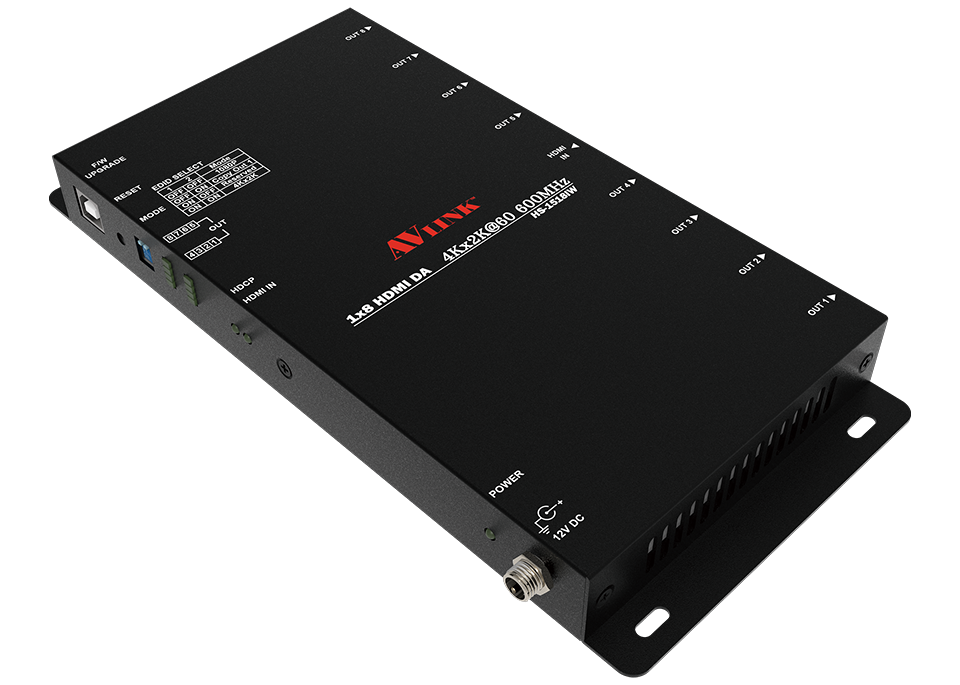

HS-1518IW
- Distribute one UltraHD/4K source to 8 HDMI displays
- HDMI 1.4/2.0 compliant and 18Gbps bandwidth
- HDCP 1.4/2.2/2.3 compliant
- Support 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 60 Hz (4:4:4)
- Support Dolby Digital/DTS-HD/Dolby TrueHD Audio
- The EDID accesses data from OUTPUT 1 when connected
- Support CEC function (OUTPUT 1)
- LED indicator shows the operating status
- Firmware upgrade via a USB-B port
- Cascading for more distributions
-
4K HDMI
Support up to 4K/60Hz 4:4:4 8bit, (HDR) 4K/60Hz 4:2:0 12bit, and 4K/30Hz 4:4:4 10bit
HDMI 2.0
HDMI (High-Definition Multimedia Interface) 1.4/2.0 compliant and 18Gbps bandwidth
EDID Management
The EDID accesses data from OUTPUT 1 when connected
HDCP 2.3
HDCP (High-bandwidth Digital Content Protection) 1.4/2.2/2.3 compliant
Dolby
Support Dolby Digital/DTS-HD/Dolby TrueHD Audio and experience the advanced sound and visual technology
CEC
Support the function of CEC (Consumer Electronics Control) for OUTPUT 1 -
HS-1518IW Max. Resolution Support 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 60 Hz (4:4:4) HDCP version HDCP 2.3 (Backward Compatible) Cable Distance (Device to Monitor) 10M (Max.) Signal Type Standard HDMI Signal HDMI Input Connector A-Type Female x 1 HDMI Output Connector A-Type Female x 8 CEC Yes Power Adapter (Min.) DC 12V 1.25A (Locking Jack) Power Consumption 6.24W (Max.) / 0.84W (Stand by) Housing Metal Size (H x W x D ) 240 x 120 x 25 mm Net Weight 646g -
-
- HS-1518IW HDMI Distribution Amplifier
- Power Adapter DC 12V
- 2x Screws
- 4x Foot Pads
- 1x User Manual
